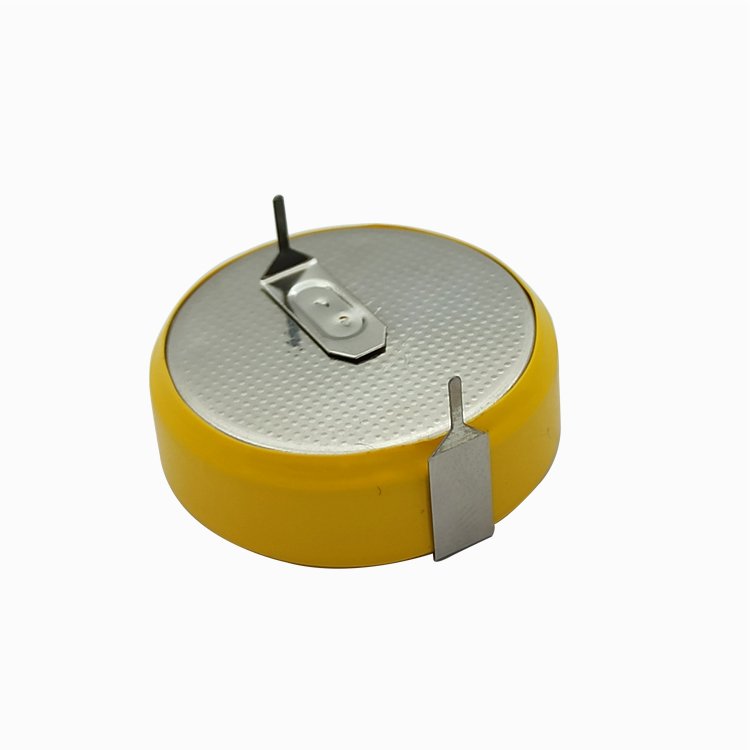

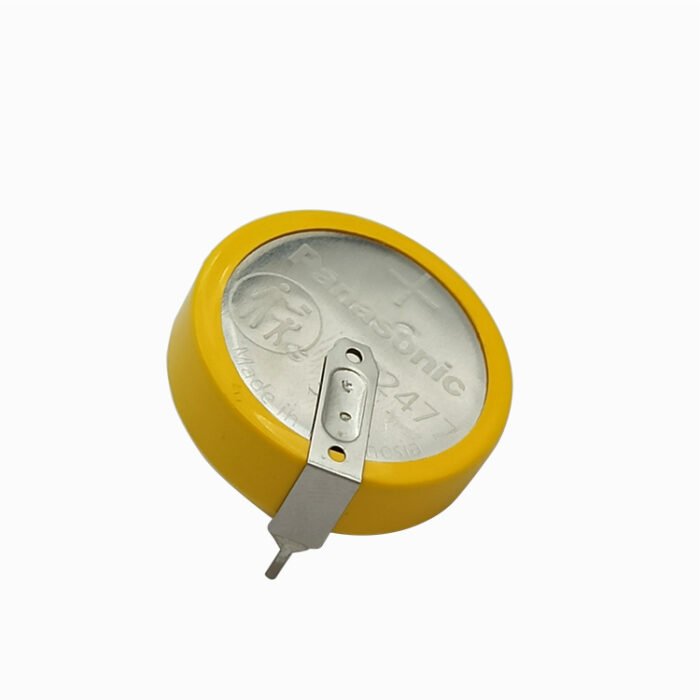

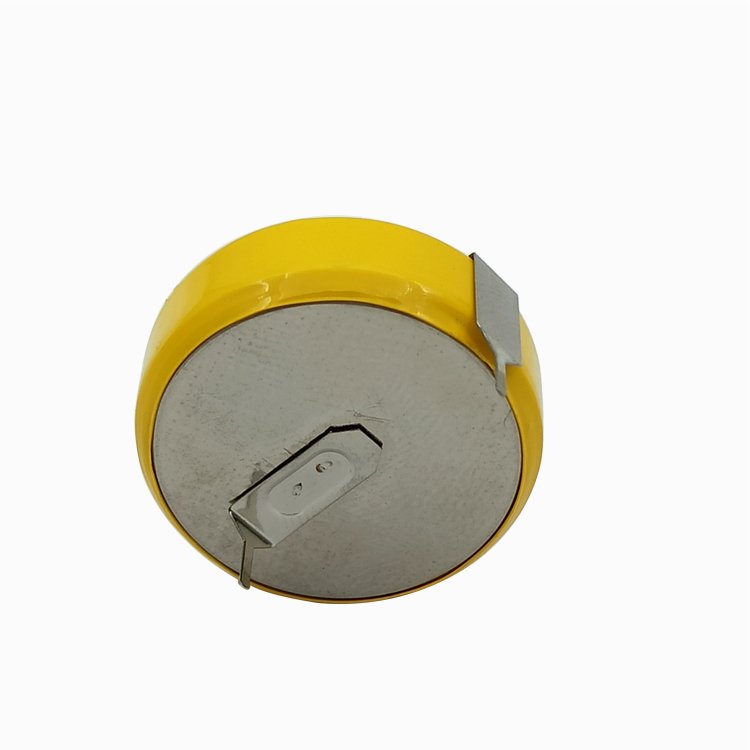

cr2477 3v battery 1000mAh with solder tabs pins
Brand：Amtoxe
Model：CR2477
voltage：3V
Dimension：24*7.7mm
Capacity：1000mAh
Battery Type：3V Lithium Manganese Battery
Work Temperature：-20~+60 degree
Nominal Current：5mA
if Rechargeable：No
Application：Smart watch, toys, cay key
Description
Primary cr2477 3v battery 1000mAh with solder tabs pins
| Product Name | Cion-type lithium manganese dioxide battery(CR series) |
| Battery Type | LiMnO2 (No rechargeable) |
| Brand | Amtoxe |
| Model | CR2477 |
| Nominal Voltage | 3 V |
| Nominal Capacity | 1000 mAh |
| Dimension | Diamter: 24.5 mm Height: 7.7 mm |
| Operating Temperature | -10℃ – 60℃ |
| Standard Current | 0.5 mA |
| Max Current | 20 mA |
| Shelf life | Not less than 90% of the capacity, following 1st year storage at 20±5ºC |
| Package | Bulk package, customized package |
cr2477 3v battery Advantages:
1. 3-5 YEARS quality warranty 2. Ultra environmental friendly button cell battery.
3. Long working time 4. Made from high-quality materials
5. Excellent performance 6. Multi – applicable
7. Excellent storage performance and low self-discharge rate
8. Excellent safety performance 9. CE certificate
10. if the customers want the battery with PCB tabs, we can do it as their drawing.
Regarding the solder tabs, please check the similar CR2032 model structure below:
FAQ:
Q: Can I have a sample order?
A: Yes, welcome!
Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs negotiation.
Q: How do you proceed with an order?
A: Firstly let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions.
Thirdly, the customer confirms the samples and places a deposit for a formal order. Fourthly we arrange the production.
Q: Can you supply OEM service?
A: Yes, it’s OK to print my logo on the product. OEM is available.
Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Any questions, please feel free to Click here and send us an inquiry.
